Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth

This guide connects Snowflake as a data source in RevSure using RSA key-pair authentication. In Data Hub, add a Snowflake source and enter the connection name, custom URL, warehouse, username, and private key from your .p8 file, then connect.

How to Set Up RevSure Snowflake Integration (RSA Private…

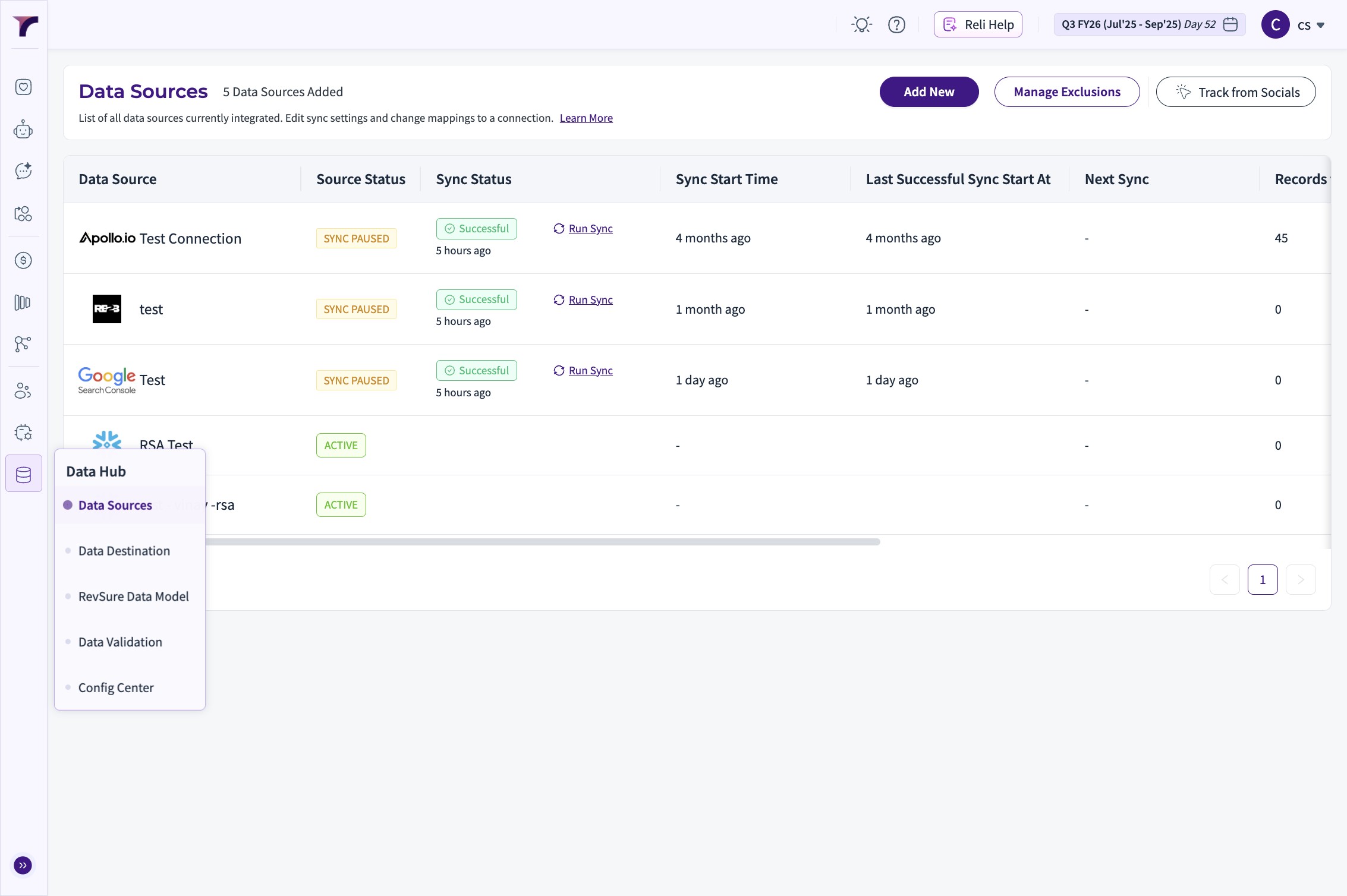

1. Navigate to Revsure App and Click "Data Hub"

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 1)

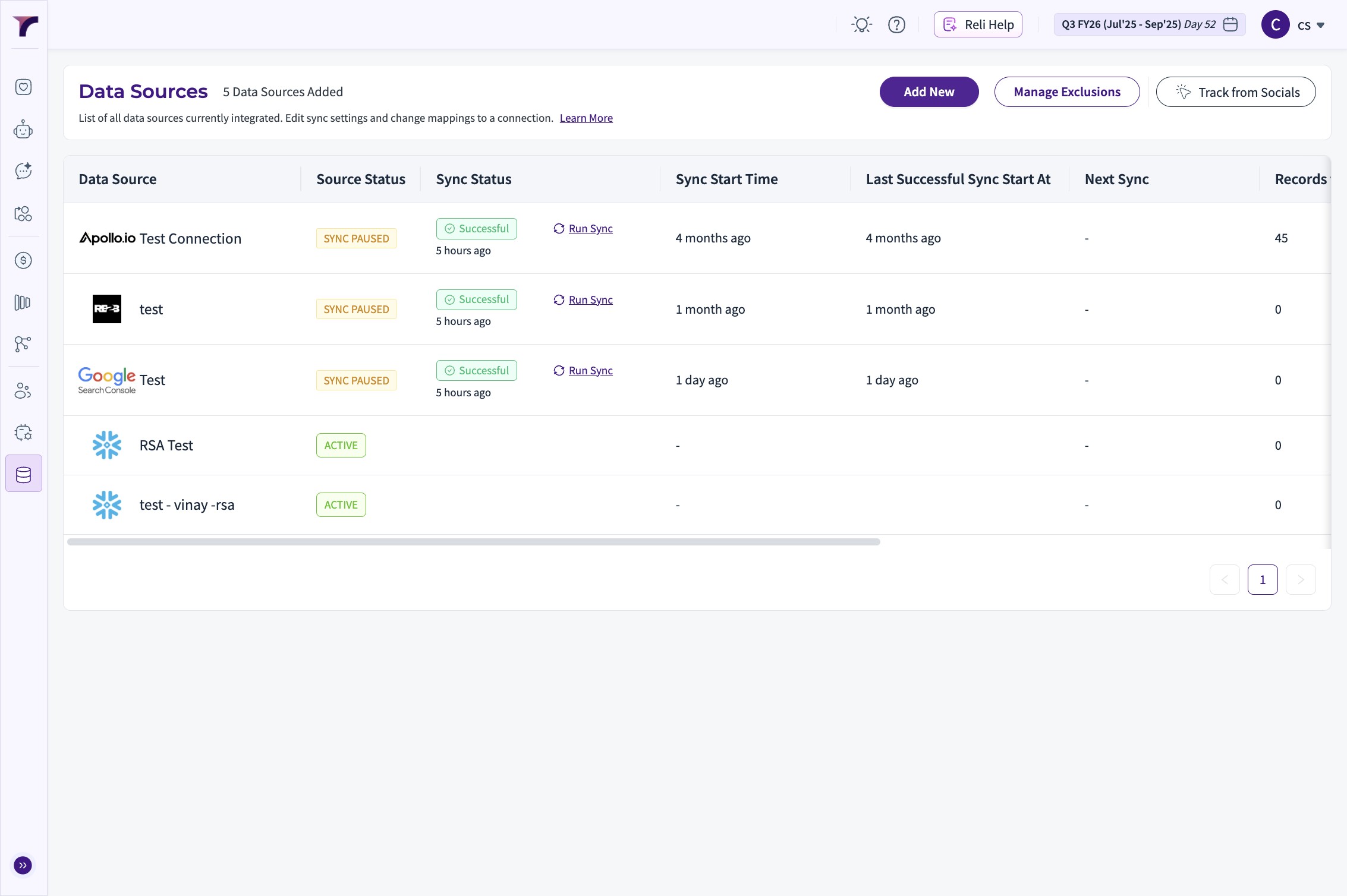

2. Click "Data Sources"

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 2)

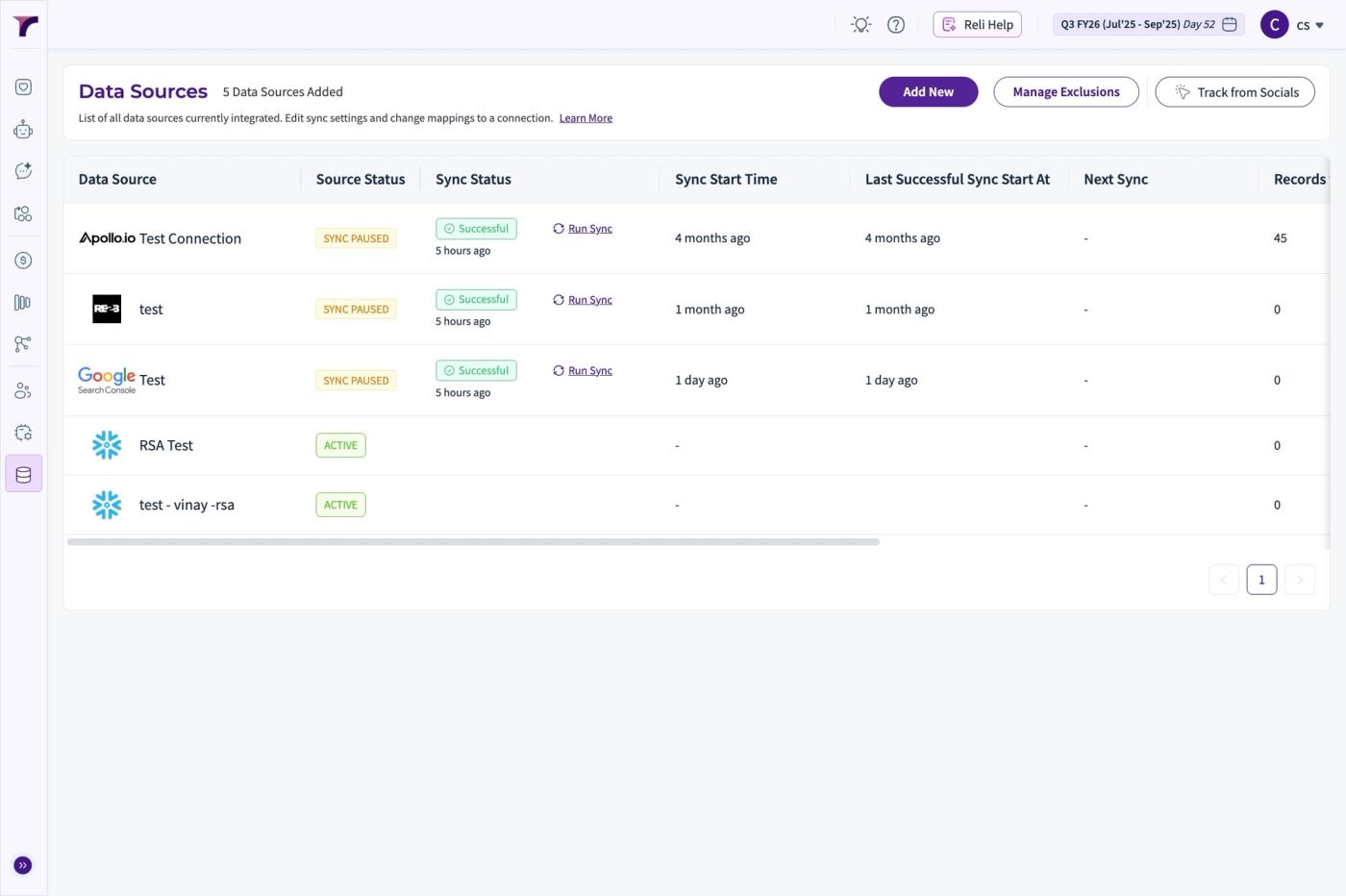

3. Click "Add New"

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 3)

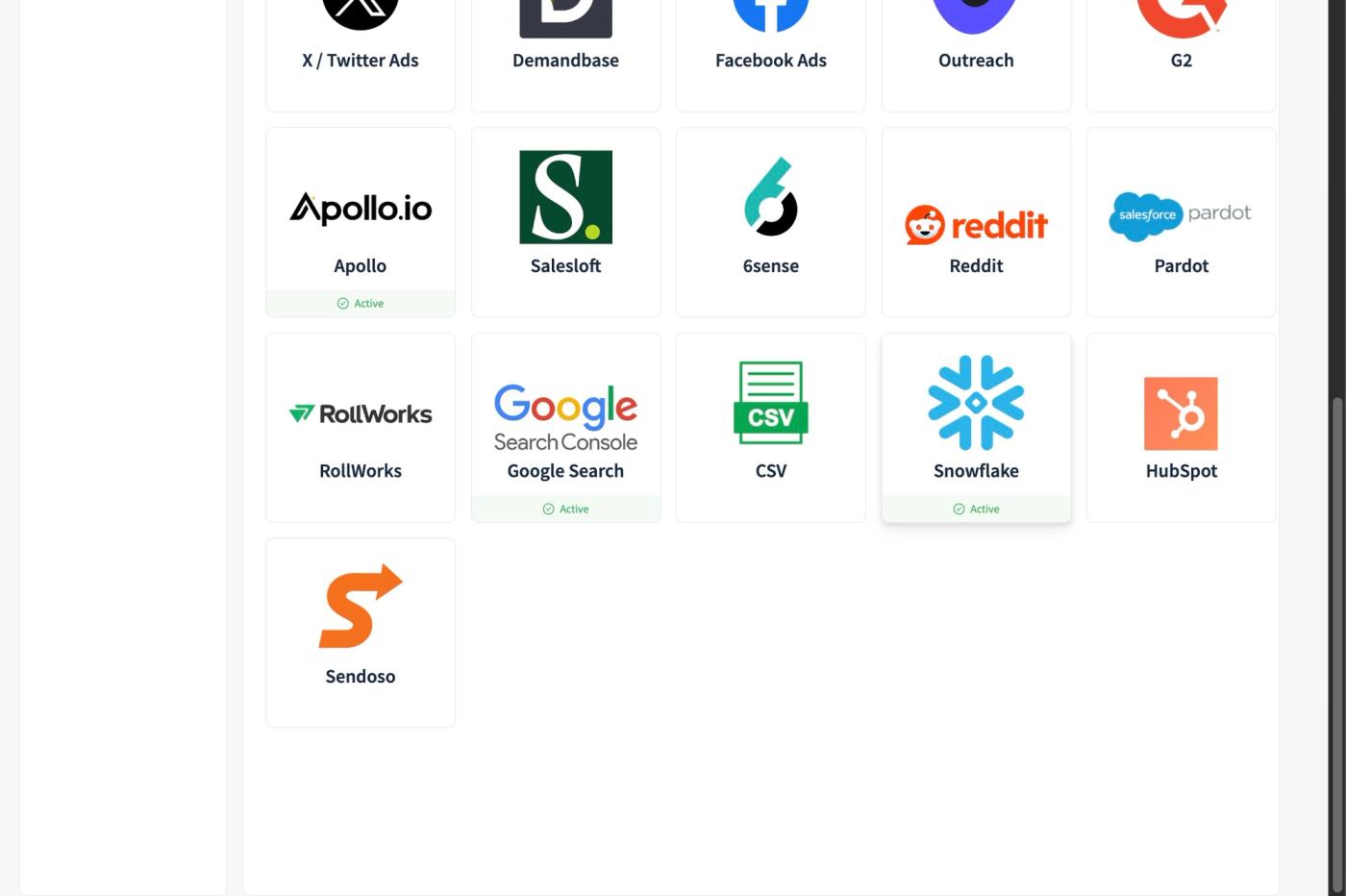

4. Click Snowflake among the list of Integrations

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 4)

5. Set the "Connection Name *" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 5)

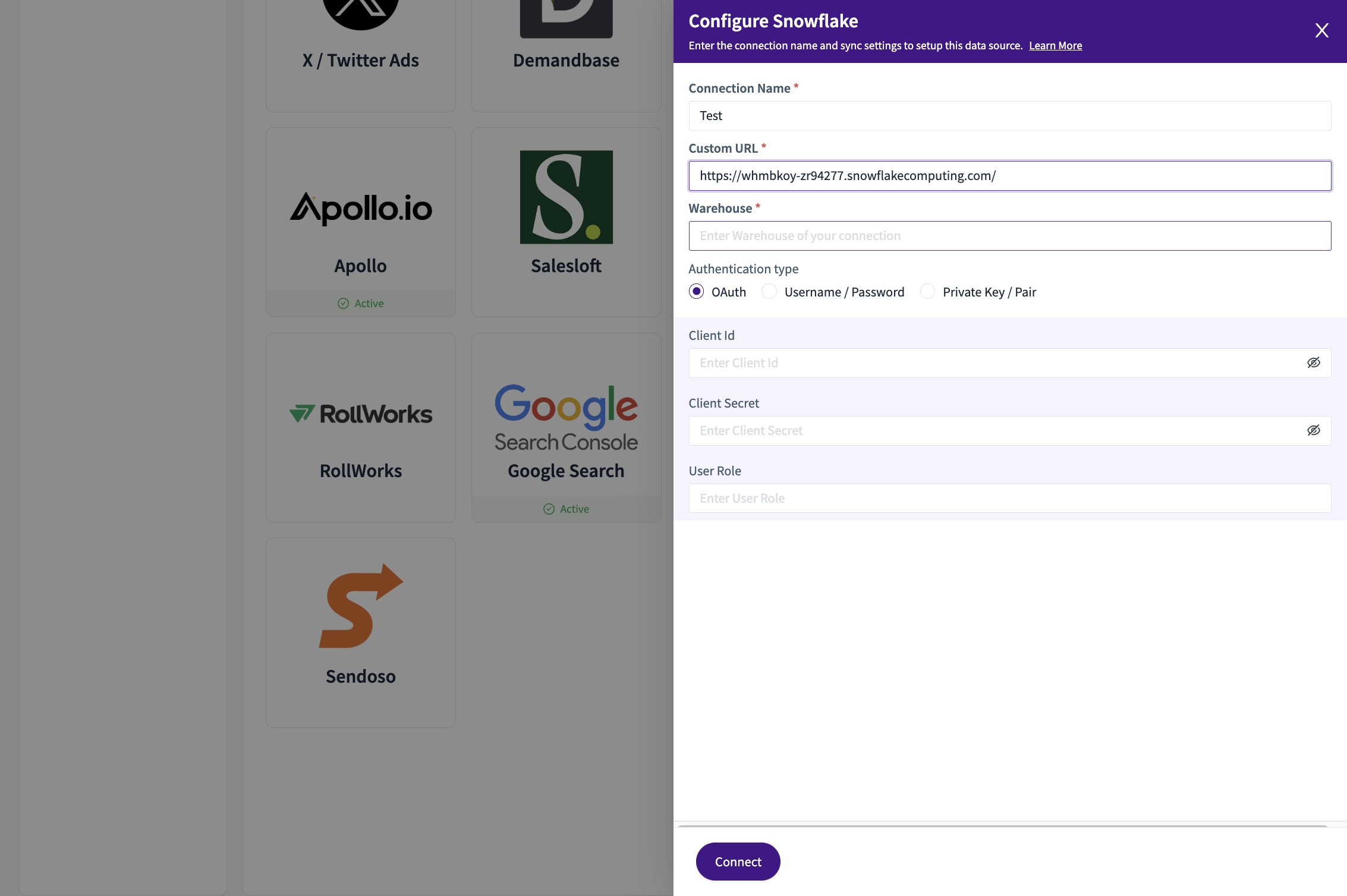

6. Fill the "Custom URL *" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 6)

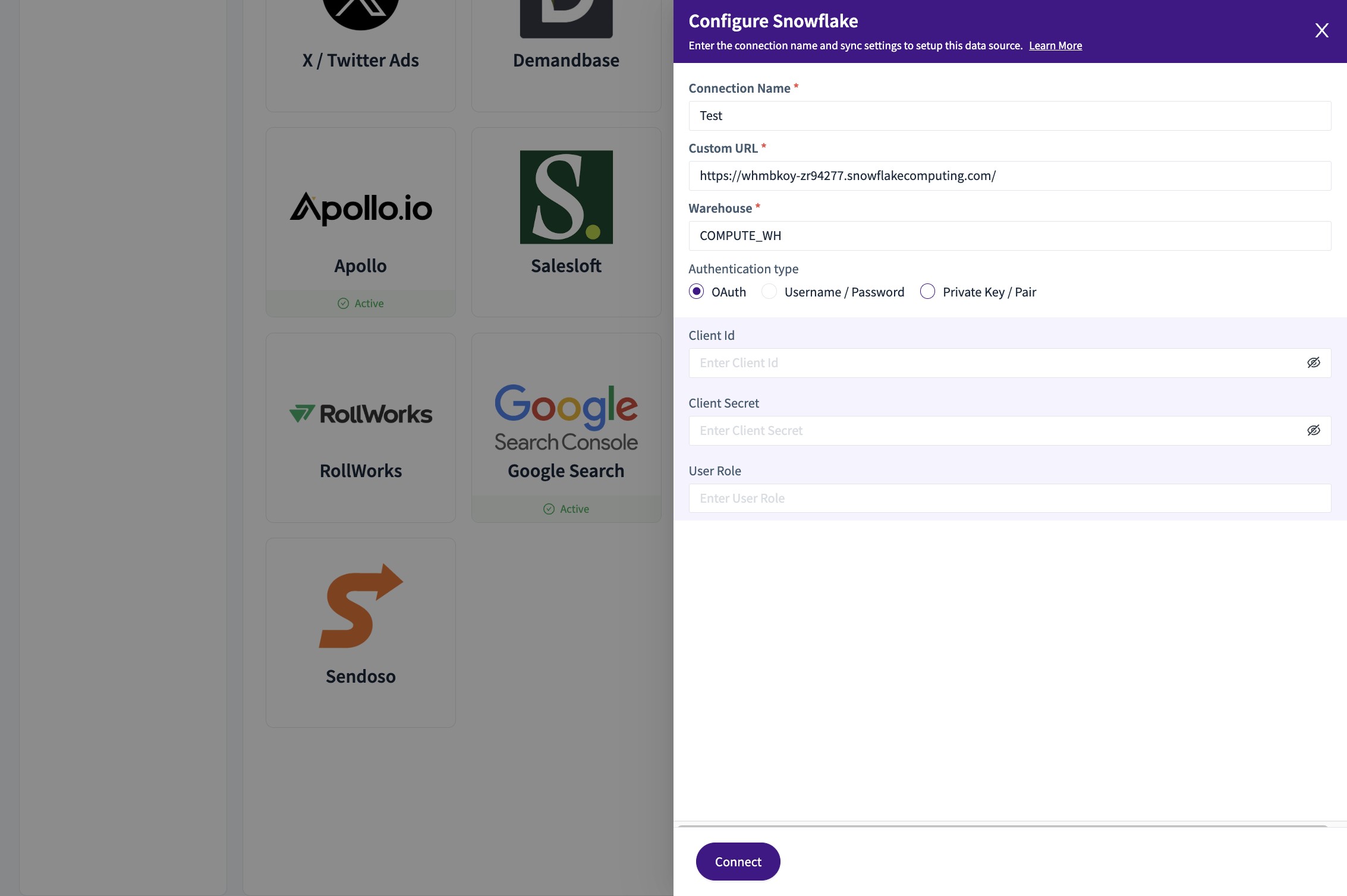

7. Fill the "Warehouse *" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 7)

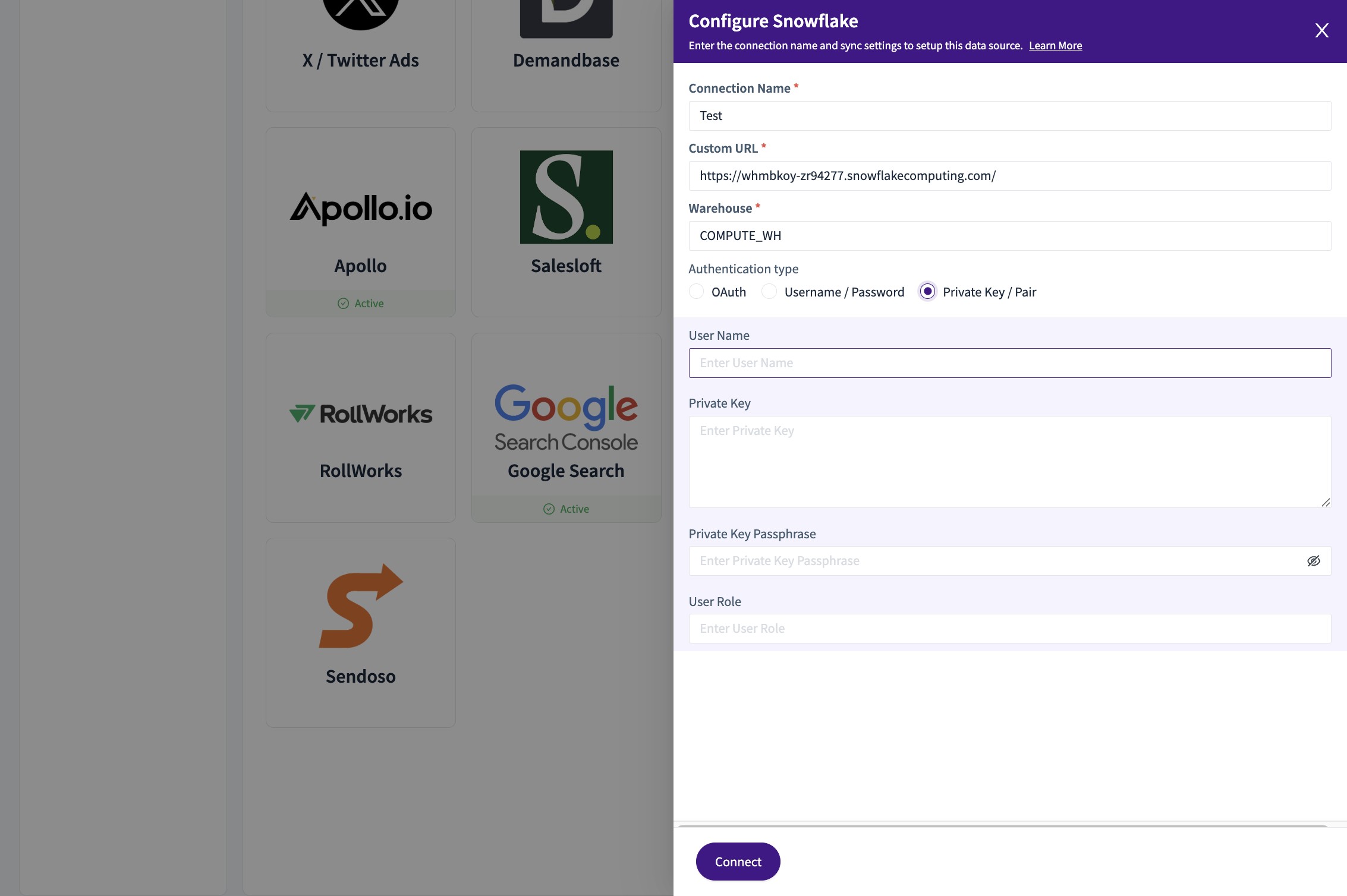

8. Choose the "Private Key / Pair" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 8)

9. Give the "User Name"

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 9)

10. From the .p8 file for Private Key of RSA, Copy paste to the "Private Key" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 10)

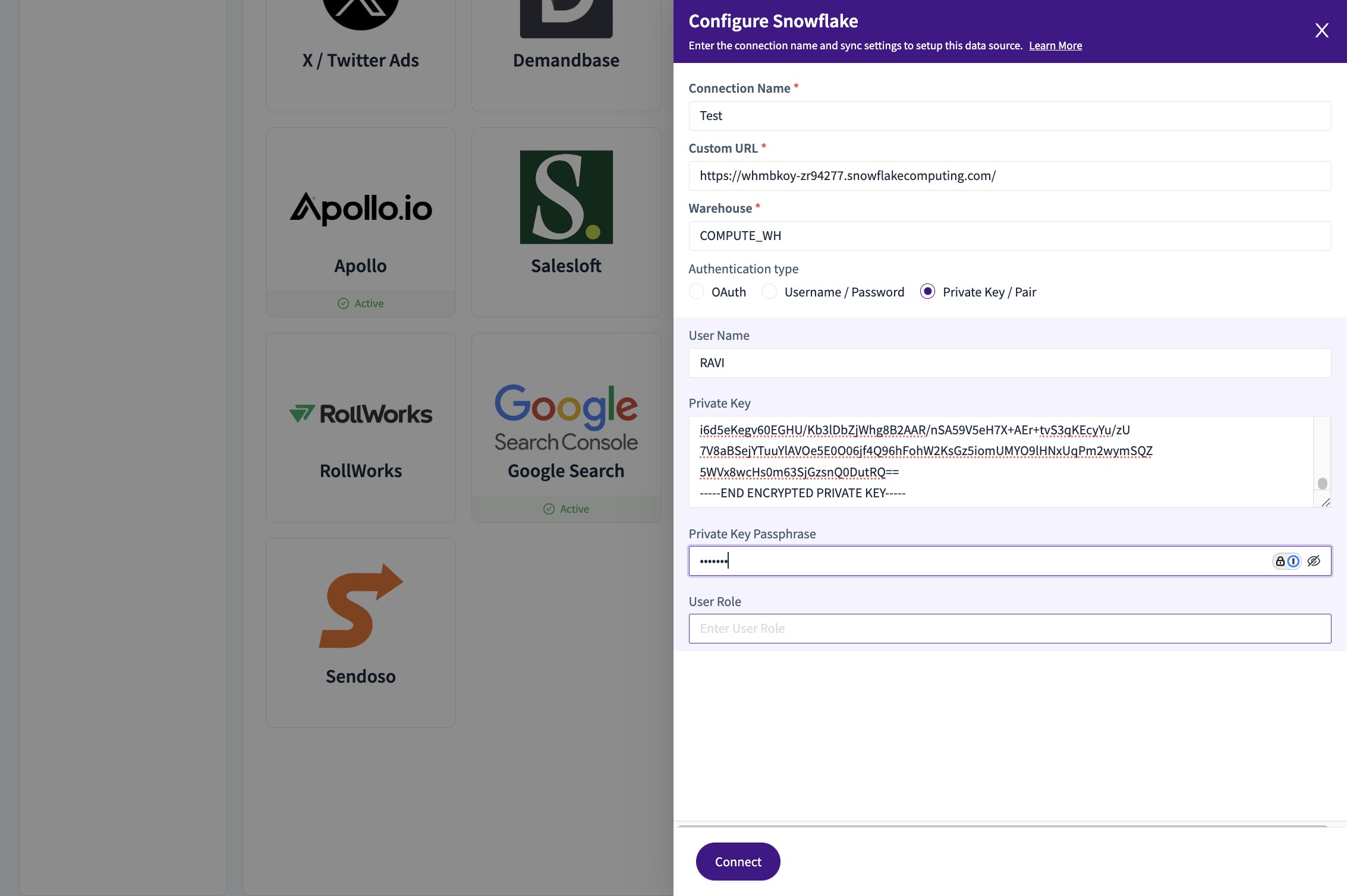

11. Set the "Private Key Passphrase" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 11)

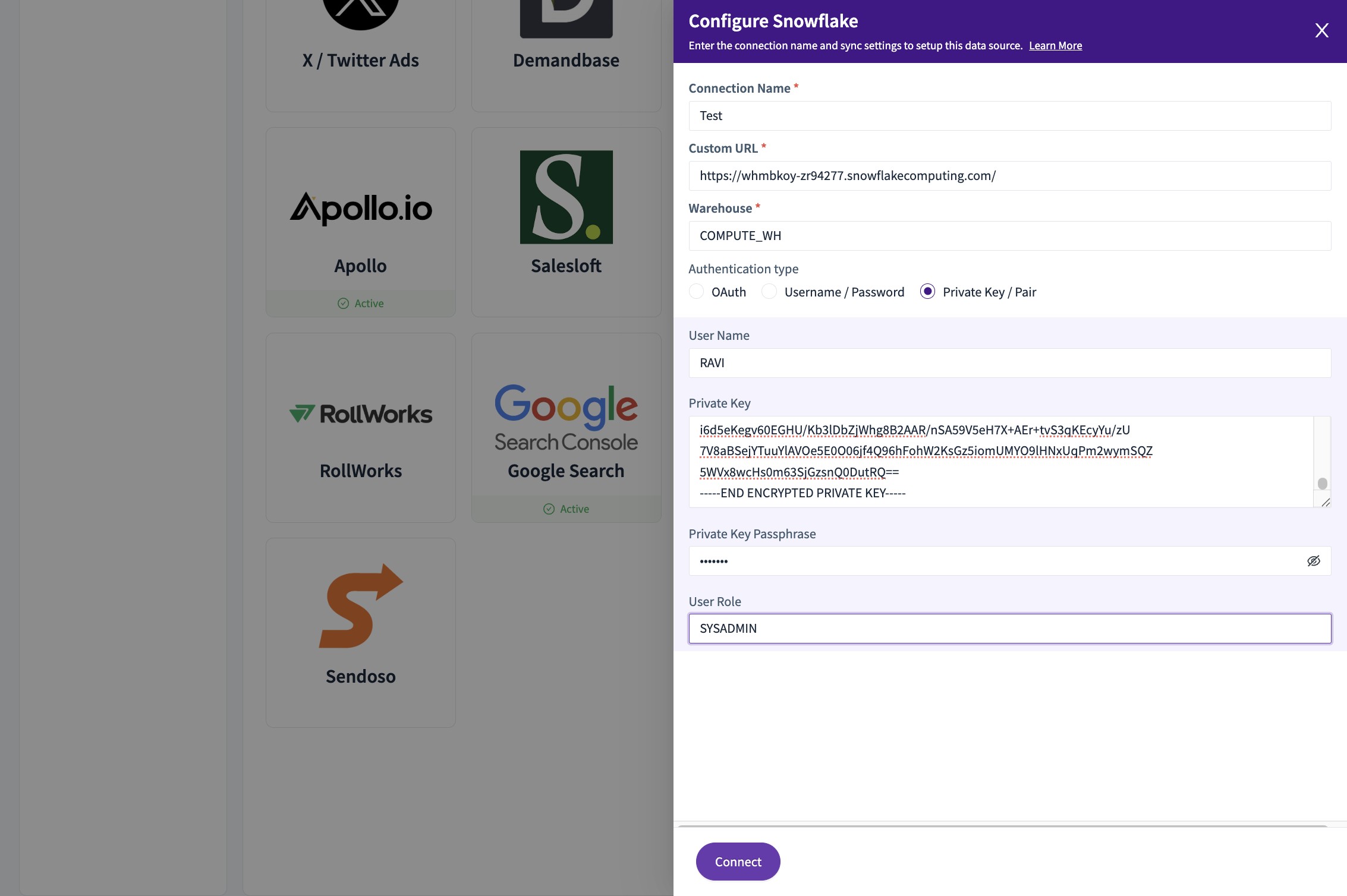

12. Set the "User Role" field

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 12)

13. Click "Connect"

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 13)

The connection is created!

The Keys and Tokens Used for Authentication are stored with Revsure in a Secure Manner utilizing Google's Key Management System

All keys and tokens are encrypted with Google Cloud KMS before being stored, ensuring plaintext values are never persisted.
Multiple CryptoKeys are maintained for different services and use cases, enabling isolation, fine-grained access control, and independent rotation.
Only ciphertext is stored in the database, making the data unreadable without authorized access to the correct KMS key.
Security of Keys, Credentials and Tokens in Revsure

‍

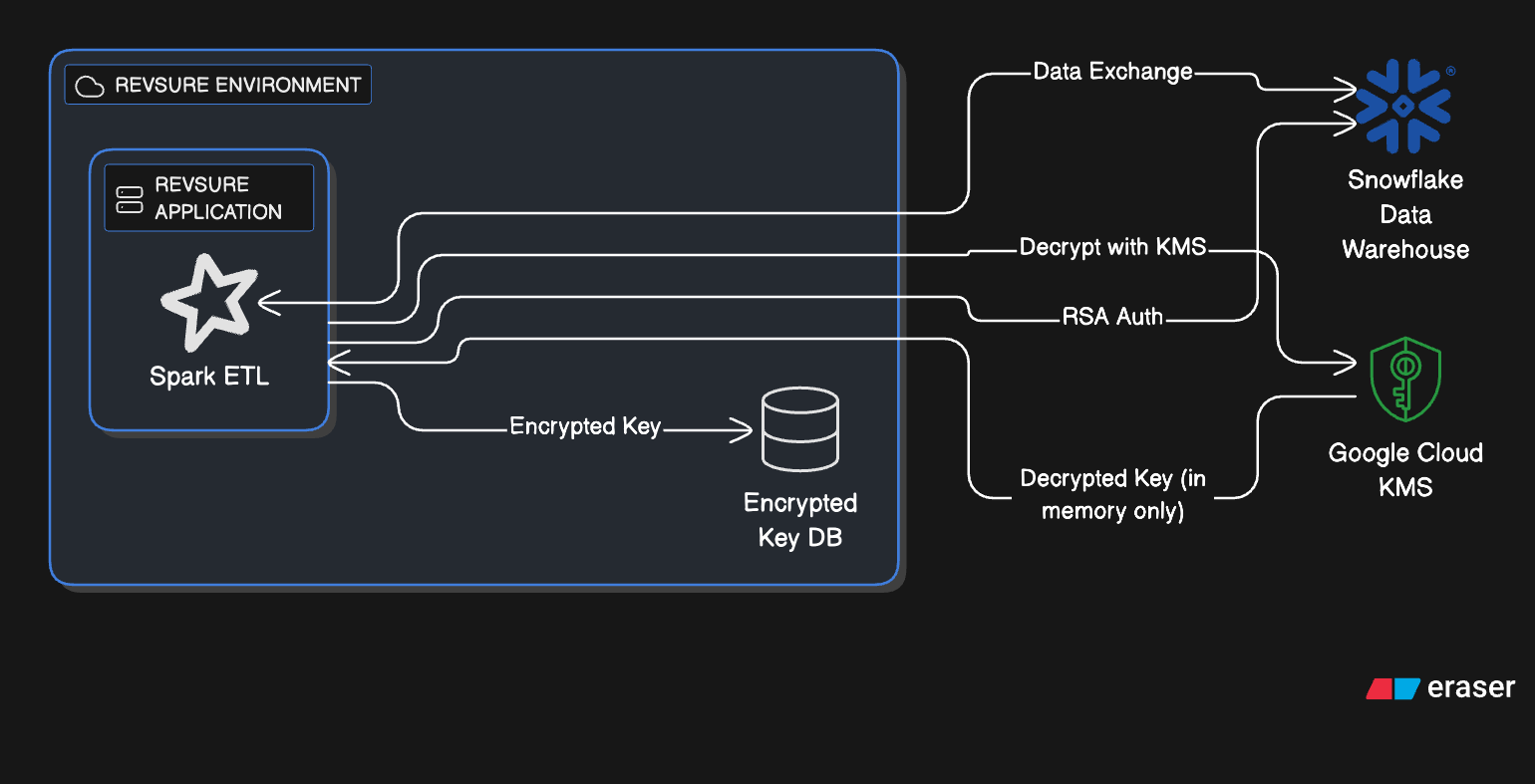

14. Snowflake Source Connection using RSA - Integration Architecture

Revsure Snowflake Integration Implementation Guide : RSA Private Key Auth (figure 14)

Data Security Practices

All Customer Data is encrypted at rest in our GCP environment (using AES256) and in transit (using HTTP over TLS)
RevSure Data-Hub Service that manages the connection uses Java based Snowflake Driver.
RevSure ETL workflows connecting to Snowflake are executed as Apache Spark batch jobs. The Spark connector relies on the Snowflake JDBC driver to handle the low-level connection details.
Both Data-Hub and Spark connectors establish a secure, encrypted connection using TLS1.2+. This ensures that all the data transferred between the Spark and Snowflake environments is protected.
All the RevSure Data-Hub Services and ETL Workflows are residing within a VPC (Virtual Private Cloud) and connected to a VPN (Virtual Private Network), thereby the services are isolated from the public internet.

‍
